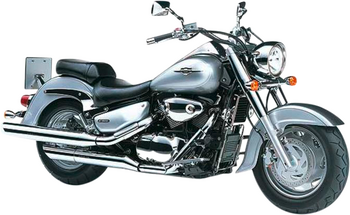

SUZUKI C 1500 INTRUDER
WVAL

SUZUKI C 1500 INTRUDER
Year of manufacture:
2005 to 2007
VIN:
-
All products for my bike!

One click is all it takes.

Save your vehicles here to view the accessories and wearing parts Louis carries for your particular model, as well as key data on settings, capacities and so on. More...

Engine size:

1462

Cylinders:

2

hp/kW:

67/42

Vehicle weight (kg):

320

Seat height (mm):

700

Valve clearance (intake):

HYDROSTÖSSEL

Valve clearance (exhaust):

HYDROSTÖSSEL

Engine idle speed:

1000 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

2,0 BAR

Tyre pressure (rear):

2,5 BAR

Spark plug 1:

NGK DPR7EA-9

Spark plug 2:

NGK DPR7EIX-9

Electrode gap:

0,8-0,9 MM

Fork tube diam.:

41 MM TELEGABEL

Chain/Final drive:

KARDAN

Capacities*:

Fork oil per rod:

416 ML SAE 5W-20

Engine oil w/o filter:

3,7 L SAE 10W-40

Engine oil with filter:

4,3 L MIN. API SF

Brake fluid:

DOT 4

Final drive oil:

200-220ML 90 GL-5

Fuel:

14,0 LITER

Coolant:

LUFT-/ÖLGEKÜHLT

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided.

Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form!
