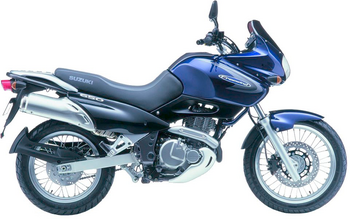

SUZUKI XF 650 FREEWIND
AC

SUZUKI XF 650 FREEWIND
Year of manufacture:
1997 to 2002
VIN:
-
All products for my bike!

One click is all it takes.

Save your vehicles here to view the accessories and wearing parts Louis carries for your particular model, as well as key data on settings, capacities and so on. More...

Engine size:

644

Cylinders:

1

hp/kW:

48/ 35

Vehicle weight (kg):

180

Seat height (mm):

810

Valve clearance (intake):

KALT 0,08-0,13 MM

Valve clearance (exhaust):

KALT 0,17-0,22 MM

Engine idle speed:

1500 ± 100 U/MIN

Carburettor air screw:

3 AUSDREHUNGEN

Tyre pressure (front):

1,75 BAR

Tyre pressure (rear):

2,0 (2,25) BAR

Spark plug 1:

NGK CR10EK

Spark plug 2:

NGK CR10EIX

Electrode gap:

0,7 MM

Fork tube diam.:

43 MM TELEGABEL

Front/rear sprockets:

15/43 ZÄHNE

Chain/Final drive:

110 GLIEDER

Capacities*:

Fork oil per rod:

655 ML SAE 15W

Engine oil w/o filter:

2,3 L SAE 10W-40

Engine oil with filter:

2,4 L MIN. API SF

Brake fluid:

DOT 4

Fuel:

18,0 LITER

Coolant:

LUFTGEKÜHLT

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided.

Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form!
